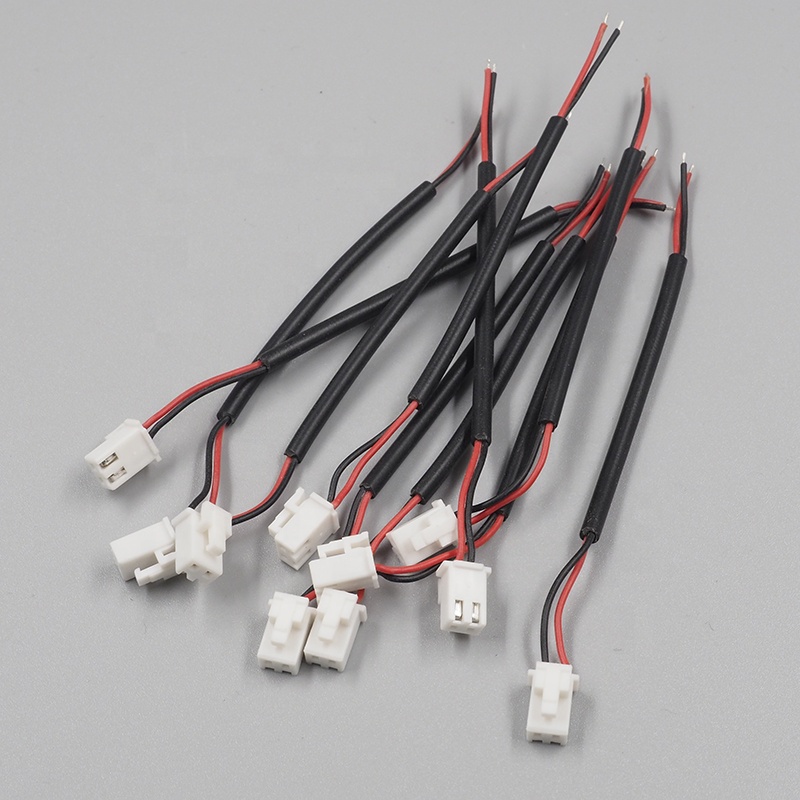

Components of XHB 2.5mm Pitch JST Wire Harness

The XHB 2.5mm Pitch JST Wire Harness refers to a specific type of wiring harness using connectors from JST (Japan Solderless Terminal) Corporation with a 2.5mm pitch. The pitch refers to the distance between adjacent electrical contacts on the connector.

Here's a breakdown of the components and specifications:

1. XHB: This likely refers to the series or model of JST connector. Different series have different features, pin configurations, and intended uses. The "XHB" series may have specific characteristics or features defined by JST.

2. 2.5mm Pitch: The pitch is the distance between the center of one contact to the center of the adjacent contact in the connector. In this case, it's 2.5mm, indicating the spacing between pins.

3. JST: JST is a well-known manufacturer of electrical connectors, and their products are widely used in various industries. The connectors are often designed to be compact and reliable, making them suitable for a range of applications.

4. Wire Harness: A wire harness is a grouping of wires or cables that are bound together to transmit signals or electrical power. In this context, the wire harness is specifically designed to work with the JST connectors mentioned, ensuring compatibility and ease of use.

When dealing with a specific wire harness like the XHB 2.5mm Pitch JST Wire Harness, it's essential to match it with the intended application. This might involve connecting specific electronic components, sensors, or devices in a system that requires a 2.5mm pitch JST connector.

If you're working on a project or need to replace a wire harness, it's crucial to identify the correct series and pitch of the JST connector to ensure compatibility. Additionally, check the specifications and pin configurations to make sure it meets the requirements of your application.
