Features and considerations related to plate and tube laser cutting machine

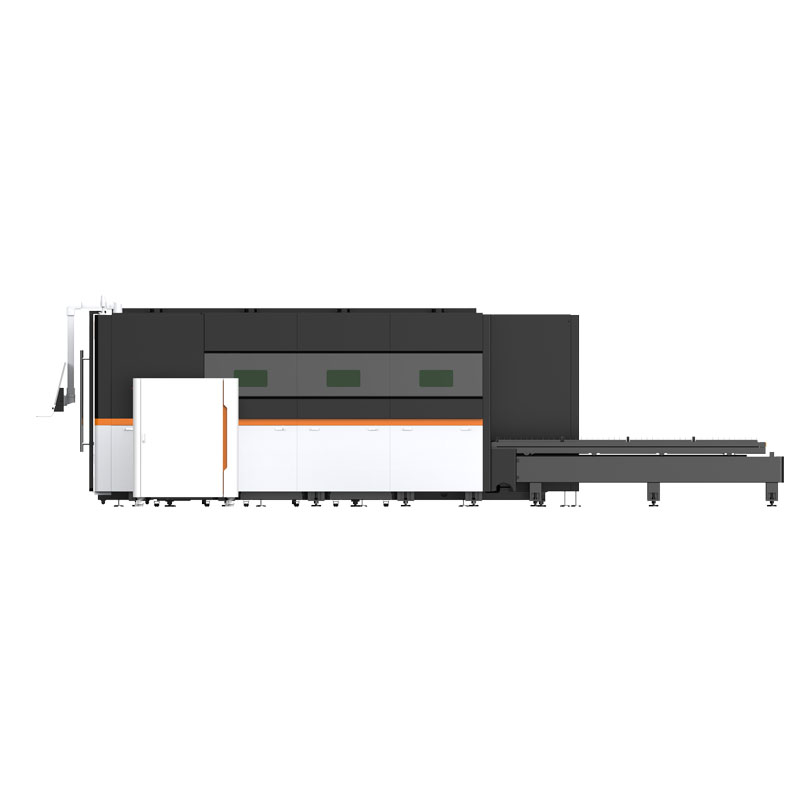

A plate and tube laser cutting machine is a versatile industrial tool used for precision cutting of flat plates and cylindrical tubes. This type of machine combines the capabilities of two laser cutting processes: flatbed (plate) laser cutting and rotary (tube) laser cutting. It's commonly used in various industries, including manufacturing, automotive, aerospace, and metal fabrication. Here are some key features and considerations:

1. Dual Processing Capabilities:

  - Flat Plate Cutting: The machine is equipped with a flatbed cutting system for processing sheet metal or flat plates. It can cut a variety of materials such as steel, stainless steel, aluminum, and more.

  - Rotary Tube Cutting: In addition to flat plate cutting, the machine includes a rotary axis that allows it to cut cylindrical tubes, pipes, and profiles. This is especially useful for applications where both flat and tubular components need precision cutting.

2. Laser Cutting Technology:

  - Fiber Laser Technology: Plate and tube laser cutting machines often use fiber laser technology. Fiber lasers provide high energy efficiency, precision, and speed in cutting various materials.

3. CNC Control System:

  - The machine is typically equipped with a computer numerical control (CNC) system that allows for precise programming of cutting paths. This ensures accuracy and repeatability in the cutting process.

4. Automatic Material Feeding:

  - Some advanced machines may include automatic material feeding systems for both flat plates and tubes, enhancing efficiency and reducing manual handling.

5. Versatility in Tube Cutting:

  - The rotary axis allows for the processing of different tube shapes and sizes. It can handle round, square, rectangular tubes, and even open profiles.

6. Cutting Software:

  - The machine is often paired with sophisticated cutting software that enables operators to design, simulate, and optimize cutting paths. This software may include features for nesting parts to minimize material waste.

7. Precision and Speed:

  - Plate and tube laser cutting machines are known for their high precision and speed. They can produce intricate cuts with minimal heat-affected zones.

8. Material Handling System:

  - Some machines may have optional features for material handling, such as loading and unloading systems, to streamline the production process.

9. Safety Features:

  - Laser cutting machines incorporate safety features, including enclosures, interlocks, and safety sensors to protect operators during the cutting process.

10. Maintenance and Serviceability:

  - Regular maintenance is crucial for optimal performance. Machines with easy access to components and good serviceability features are preferred.

When considering the purchase of a plate and tube laser cutting machine, factors such as the size of the workpieces, the types of materials to be processed, production volume, and specific application requirements should be taken into account. It's advisable to work with reputable manufacturers and suppliers who can provide guidance on selecting the right machine for your needs.
