Key features and functions of a rail switching power supply driver

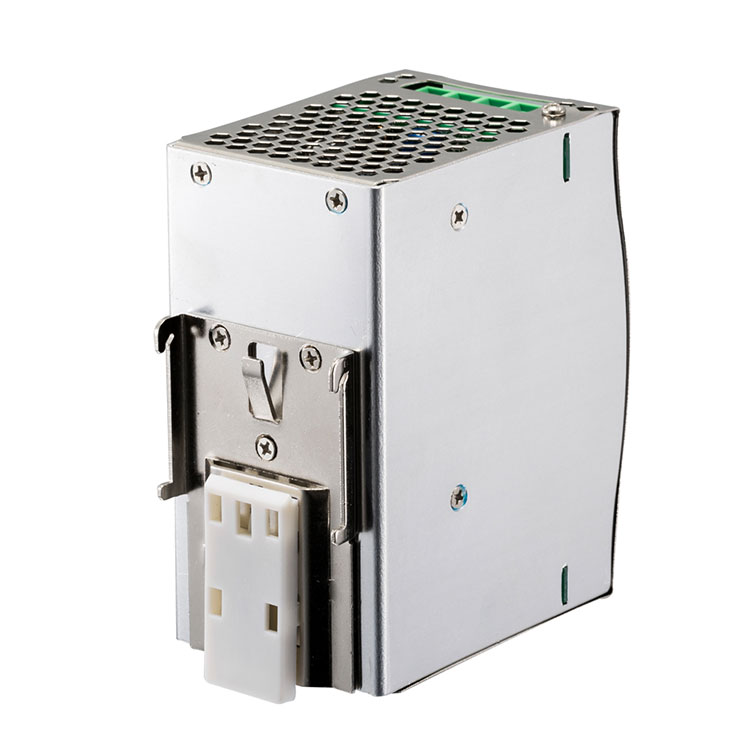

A rail switching power supply driver, also known simply as a switching power supply driver or LED driver, is a device used to regulate the power supplied to LED lighting systems, particularly those used in rail or track lighting setups. These drivers convert incoming electrical power, typically from a mains power source, into a form suitable for powering LED lighting fixtures.

Here are the key features and functions of a rail switching power supply driver:

1. Voltage Conversion: The driver converts the input voltage from the mains power supply (usually AC voltage) to the appropriate voltage required by the LED lighting system (usually low-voltage DC). This conversion is necessary because LEDs typically operate on low-voltage DC power.

2. Current Regulation: LED drivers also regulate the current supplied to the LED fixtures, ensuring that they receive a constant and stable current. This helps maintain consistent brightness and prevents overloading or damaging the LEDs.

3. Dimming Functionality: Many LED drivers offer dimming capabilities, allowing users to adjust the brightness of the LED lighting system according to their preferences or requirements. Dimming can be achieved through various methods, such as analog dimming, pulse-width modulation (PWM), or digital control protocols like DALI (Digital Addressable Lighting Interface) or DMX (Digital Multiplex).

4. Efficiency and Power Factor Correction: Switching power supply drivers are designed to operate with high efficiency, minimizing energy losses during the conversion process. They may also incorporate power factor correction (PFC) circuitry to improve the power factor of the LED lighting system, reducing harmonic distortion and improving overall energy efficiency.

5. Protection Features: LED drivers often include protection features to safeguard both the driver itself and the connected LED fixtures. These protections may include overcurrent protection, overvoltage protection, short-circuit protection, and overtemperature protection, among others.

6. Compact Size and Mounting Options: Rail switching power supply drivers are typically compact in size and may be designed for easy integration into track lighting systems. They may support various mounting options, such as surface mounting, recessed mounting, or integration within the track or rail structure.

7. Compliance and Certification: LED drivers must comply with safety and performance standards specific to the region or market where they are used. Manufacturers often obtain certifications such as UL (Underwriters Laboratories), CE (Conformité Européenne), or FCC (Federal Communications Commission) compliance to ensure their products meet regulatory requirements.

Rail switching power supply drivers are essential components of LED lighting systems, providing the necessary electrical power and control functions to ensure optimal performance, efficiency, and longevity of LED fixtures in rail or track lighting applications.
