Key Points about Ignition Coil

An ignition coil is a crucial component in the ignition system of internal combustion engines. Its primary function is to convert the low voltage supplied by the battery into a high-voltage electrical pulse required to ignite the air-fuel mixture in the engine's combustion chambers. Here are some key points about ignition coils:

1. Basic Operation: The ignition coil operates on the principle of electromagnetic induction. It consists of two coils of wire wound around a core, typically made of iron or ferrite. The primary coil, connected to the battery, carries low-voltage direct current (DC), while the secondary coil, connected to the spark plugs, produces high-voltage pulses.

2. Voltage Step-Up: When current flows through the primary coil, it generates a magnetic field around the core. When the current is interrupted (by the ignition points, ignition module, or electronic control unit), the magnetic field collapses rapidly, inducing a high-voltage pulse in the secondary coil through electromagnetic induction. This high voltage is typically in the range of several thousand volts, sufficient to create a spark across the spark plug electrodes.

3. Types of Ignition Systems:

  - Conventional Ignition System: Found in older vehicles, it uses a set of breaker points, a condenser, and a mechanical distributor to control the timing of the spark.

  - Electronic Ignition System: Common in modern vehicles, it replaces the mechanical components with solid-state electronics, such as an ignition module or an engine control unit (ECU), to control ignition timing and coil operation more precisely.

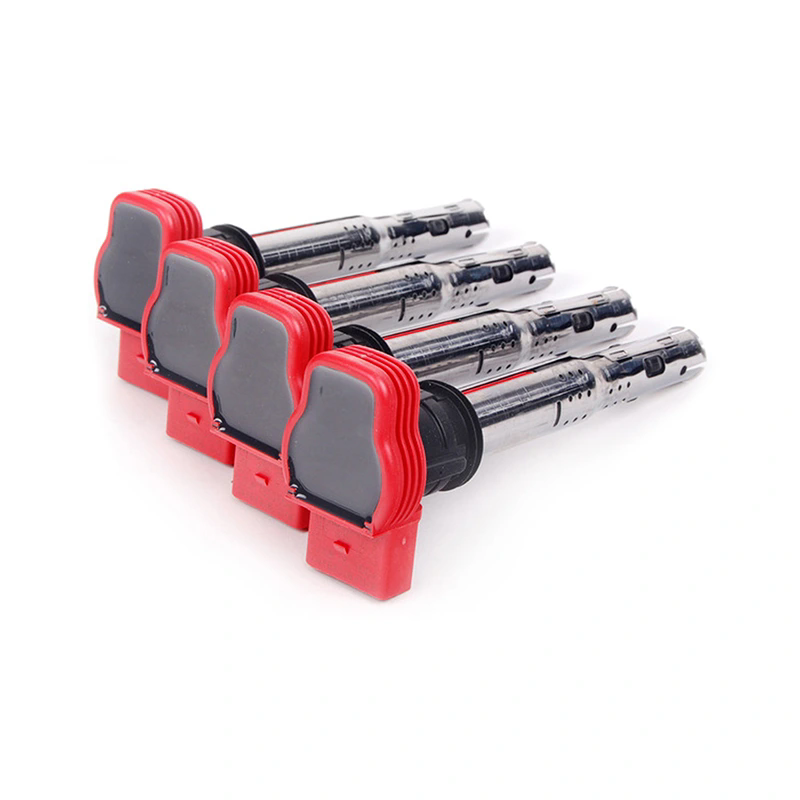

4. Construction: Ignition coils come in various shapes and sizes depending on the vehicle's ignition system and space constraints. They are typically encased in a heat-resistant housing and may include features such as mounting brackets, terminals for electrical connections, and internal insulation to prevent arcing.

5. Fault Diagnosis: Ignition coils can fail due to various reasons, including overheating, insulation breakdown, internal short circuits, or corrosion. Symptoms of a faulty ignition coil may include engine misfires, rough idling, difficulty starting, reduced fuel efficiency, and illuminated check engine lights. Diagnostic tools such as a multimeter or dedicated ignition system tester can be used to test the coil's primary and secondary resistance, insulation resistance, and output voltage.

6. Replacement: When a faulty ignition coil is diagnosed, it is typically replaced as a unit. Replacement coils are available from automotive parts suppliers and come in various aftermarket and OEM options. It's essential to choose a coil that matches the vehicle's make, model, and ignition system requirements.

Overall, the ignition coil plays a critical role in ensuring reliable engine performance by providing the high-voltage spark needed for combustion in internal combustion engines. Regular maintenance and timely replacement of faulty ignition coils are essential for optimal engine operation and fuel efficiency.
