Understanding DC Tubular Motors: A Modern Solution for Automation

DC tubular motors are increasingly being used in various industries and applications, thanks to their compact design, efficiency, and versatility. These motors are particularly popular in home automation, industrial settings, and smart devices. This article will explore what DC tubular motors are, how they work, their advantages, and their key applications.

What is a DC Tubular Motor?

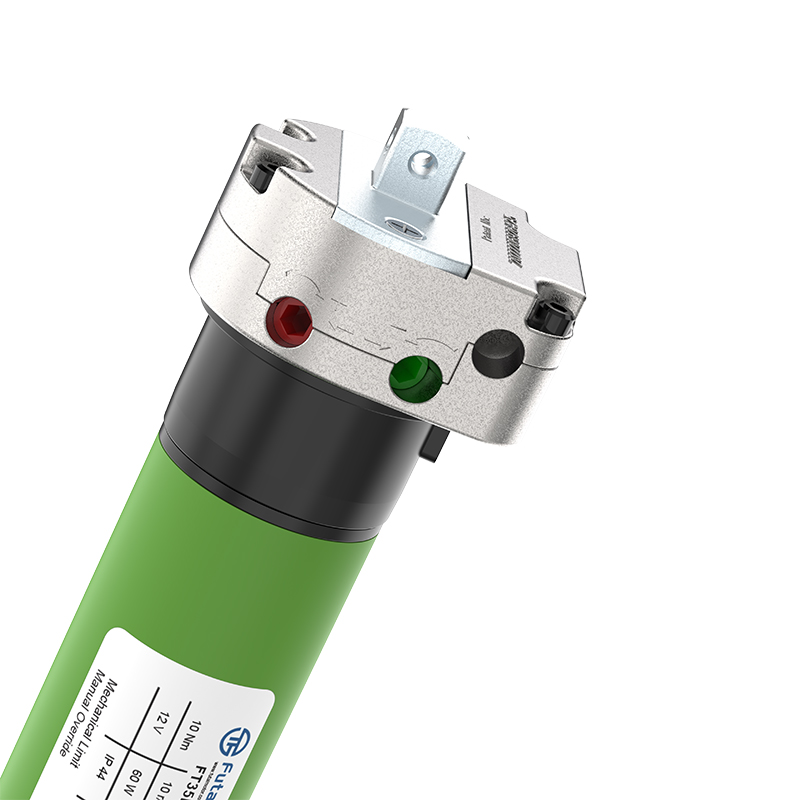

A DC tubular motor is a type of electric motor powered by direct current (DC) and housed within a cylindrical or tubular casing. Its tubular shape makes it compact and easy to integrate into a wide range of systems, especially where space is limited. These motors are often used for linear motion or to provide rotational force in applications like window blinds, roller shutters, and other automated systems.

How Does a DC Tubular Motor Work?

DC tubular motors operate using basic electromagnetic principles. Inside the motor, an electric current flows through the windings, creating a magnetic field. This magnetic field interacts with a permanent magnet or another magnetic field, causing the rotor to spin or move linearly, depending on the motor design.

The key components of a DC tubular motor include:

1. Rotor: The moving part that generates motion.

2. Stator: The stationary part containing the windings or permanent magnets.

3. Shaft: Transmits the motion or force generated by the motor.

4. Casing: A tubular shell that protects the internal components and makes installation easier.

5. Control System: Many tubular motors include built-in controllers to regulate speed, torque, and direction.

Advantages of DC Tubular Motors

DC tubular motors are valued for their unique set of benefits, which make them suitable for modern automation needs:

1. Compact Design:

  The cylindrical shape allows the motor to fit into tight spaces, making it ideal for concealed or space-sensitive installations.

2. Energy Efficiency:

  These motors consume less power, ensuring cost-effective and sustainable operation.

3. Quiet Operation:

  DC tubular motors are designed to operate with minimal noise, making them perfect for home or office environments.

4. Precision Control:

  With advanced control systems, they can deliver precise speed and position adjustments, which is essential in applications requiring accuracy.

5. Durability:

  Built with robust materials, tubular motors are resistant to wear and tear, ensuring a long operational life.

6. Versatility:

  Their adaptability makes them suitable for a wide range of applications, from residential to industrial settings.

Applications of DC Tubular Motors

The versatility of DC tubular motors makes them useful in numerous industries. Below are some common applications:

1. Home Automation:

  - Roller shutters and blinds

  - Motorized curtains

  - Smart garage doors

2. Industrial Automation:

  - Conveyor belts

  - Automated gates and barriers

  - Adjustable workstations

3. Smart Devices:

  - Robotic systems

  - Vending machines

  - Compact lifting systems

4. Commercial Spaces:

  - Shopfront shutters

  - Motorized screens and projectors

5. Renewable Energy:

  - Adjustable solar panels

  - Small wind turbine systems

Choosing the Right DC Tubular Motor

When selecting a DC tubular motor, consider the following factors to ensure optimal performance:

1. Load Requirements:

  Determine the weight or force the motor will need to handle. Choose a motor with sufficient torque to meet these needs.

2. Speed and Precision:

  Depending on the application, you may need a motor that offers specific speed settings and precise control.

3. Power Source:

  Ensure the motor is compatible with your available DC power supply.

4. Size and Design:

  The motor should fit within the space constraints of your system without compromising functionality.

5. Control Options:

  Look for motors with advanced control features like remote operation, programmable settings, or compatibility with smart home systems.

6. Durability:

  For industrial or outdoor use, select a motor with high-quality materials and weather-resistant casing.

Maintenance Tips for DC Tubular Motors

Proper maintenance ensures the longevity and efficiency of your motor:

- Regularly inspect the motor for dust, debris, or wear.

- Keep the motor casing clean and free from obstructions.

- Lubricate moving parts if recommended by the manufacturer.

- Check electrical connections to ensure they are secure and functioning correctly.

- Monitor performance for unusual noise or vibration, which may indicate internal issues.

Conclusion

DC tubular motors are a reliable and efficient solution for modern automation needs. Their compact design, energy efficiency, and versatility make them suitable for a wide range of applications, from home automation to industrial systems. By understanding their functionality and benefits, as well as ensuring proper selection and maintenance, users can maximize the potential of these motors in their respective applications.
