What Are Cartridge Heaters and Why Are They Important?

In many industrial and manufacturing processes, precise and reliable heating is essential. Cartridge heaters are specialized heating elements designed to provide localized, high-temperature heat in compact spaces. Their efficiency, durability, and versatility make them widely used in applications ranging from plastic molding to packaging, medical equipment, and food processing.

What is a Cartridge Heater?

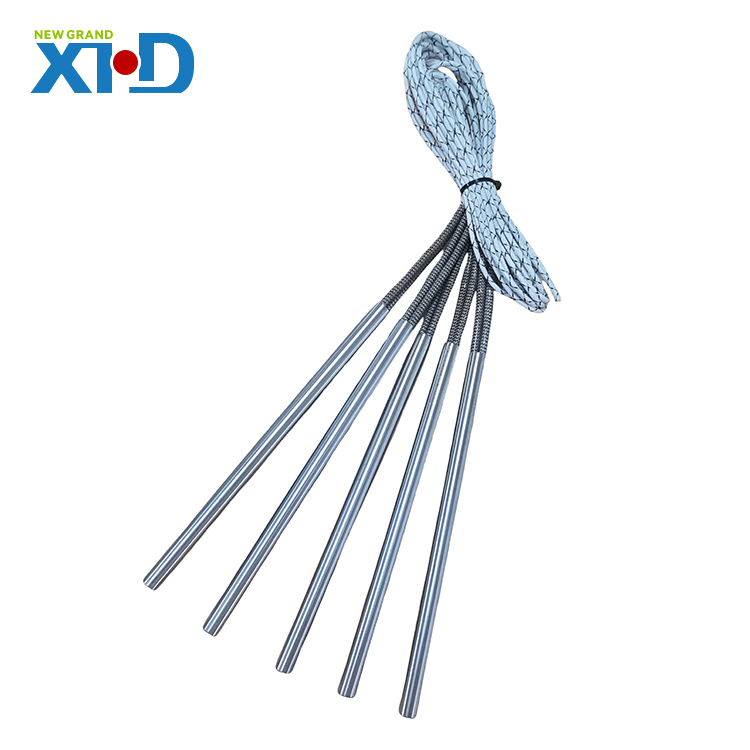

A cartridge heateris a cylindrical electric heating element that fits into drilled holes or cavities in metal blocks or molds. It consists of a resistance wire(usually made of nickel-chromium alloy) surrounded by high-quality insulation materials such as magnesium oxide powderand enclosed in a stainless steel sheath.

Cartridge heaters are designed to provide uniform heat transfer directly to the metal parts, enabling precise temperature control in industrial equipment.

What Are the Key Features of Cartridge Heaters?

Compact Size:Small diameter and length customized to fit specific applications.

High Watt Density:Efficiently generate high temperatures up to 750°C (1382°F).

Durability:Resistant to oxidation, corrosion, and mechanical stress.

Fast Heat-Up Time:Quickly reach operating temperature.

Versatility:Available in various sizes, wattages, voltages, and with different lead wire configurations.

Where Are Cartridge Heaters Used?

Cartridge heaters are essential in many industries, including:

Plastic Injection Molding:Heating molds to ensure proper shaping and curing of plastic parts.

Packaging Equipment:Sealing and cutting operations requiring precise temperature control.

Medical Devices:Sterilization and laboratory instruments.

Food Processing:Heating plates, sealing bars, and equipment that require consistent heat.

Semiconductor Manufacturing:Controlled heating in wafer processing.

Printing Industry:Drying and curing inks.

What Are the Advantages of Using Cartridge Heaters?

Precision Heating:Targeted heat delivery minimizes energy waste.

Customizable Designs:Tailored to fit specific hole sizes and power requirements.

Long Service Life:High-quality materials ensure durability under demanding conditions.

Ease of Installation:Simple insertion into drilled holes or cavities.

Energy Efficiency:Direct heating reduces heat loss.

What Should You Consider When Choosing a Cartridge Heater?

When selecting a cartridge heater, consider the following:

Size and Diameter:Must match the hole or cavity dimensions for effective heat transfer.

Wattage and Voltage:Ensure compatibility with your power supply and heating needs.

Operating Temperature:Choose a heater rated for the required temperature range.

Lead Wire Type and Length:Select appropriate insulation and length for your application environment.

Sheath Material:Stainless steel is common, but other alloys are available for corrosion resistance or higher temperatures.

Conclusion: Why Are Cartridge Heaters Essential?

Cartridge heaters provide reliable, efficient, and precise heating solutions for many industrial processes. Their ability to deliver concentrated heat in compact spaces makes them invaluable for equipment requiring consistent temperature control.

By selecting the right cartridge heater, businesses can improve process quality, reduce downtime, and optimize energy use—making cartridge heaters a smart investment for modern manufacturing.
